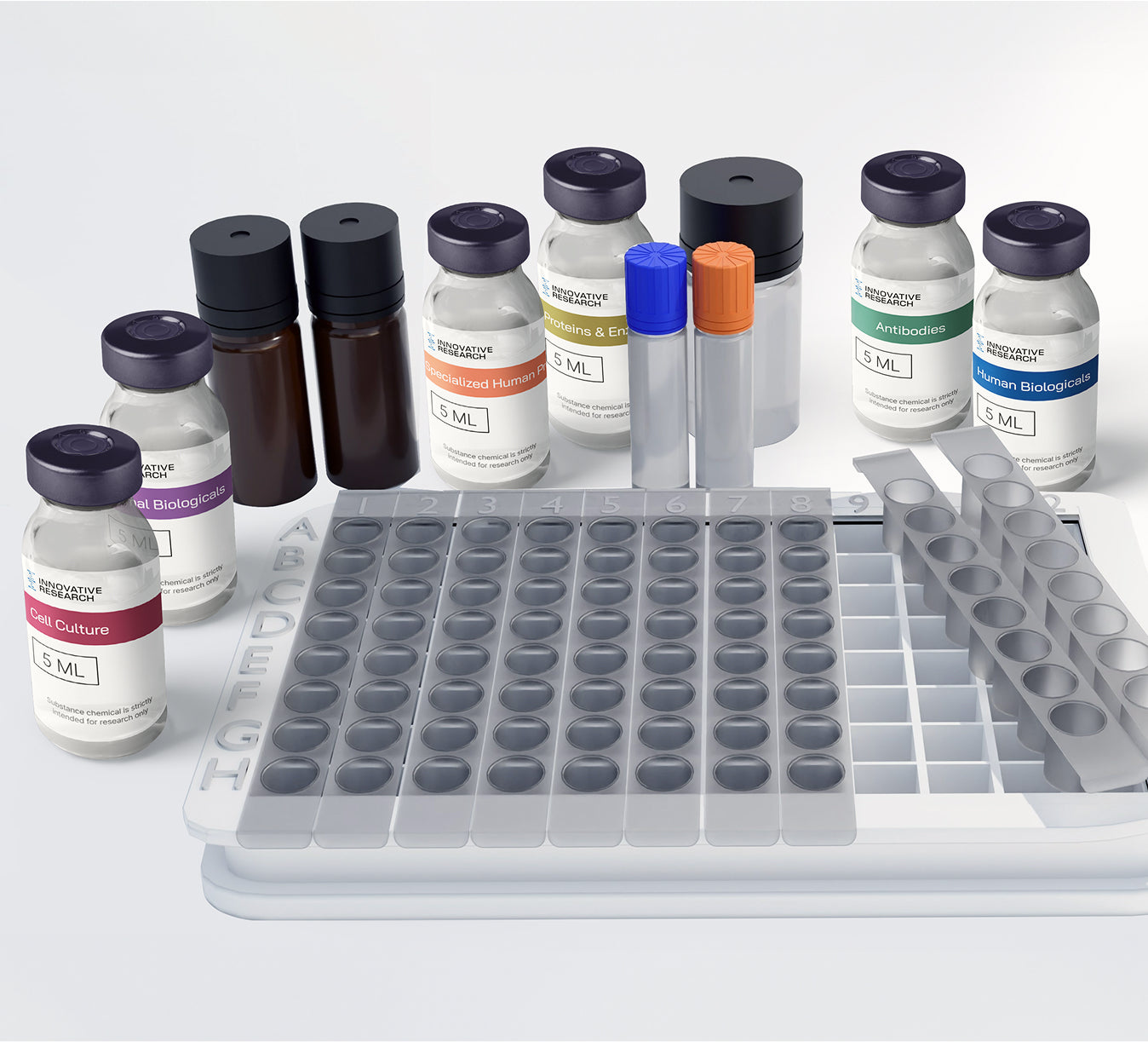

This Human DC-SIGN (CD209) ELISA Kit from Innovative Research is intended for Quantitative Detection of human CD209 in cell culture supernates, serum and plasma (heparin, EDTA). Strip well format. Reagents for up to 96 tests.

This human CD209 ELISA Kit was based on standard sandwich enzyme-linked immune-sorbent assay technology. A monoclonal antibody from mouse specific for CD209 has been precoated onto 96-well plates. Standards (Expression system for standard: NSO, Immunogen sequence: Q59-A404) and test samples are added to the wells, a biotinylated detection polyclonal antibody from goat specific for CD209 is added subsequently and then followed by washing with PBS or TBS buffer. Avidin-Biotin-Peroxidase Complex was added and unbound conjugates were washed away with PBS or TBS buffer. HRP substrate TMB was used to visualize HRP enzymatic reaction. TMB was catalyzed by HRP to produce a blue color product that changed into yellow after adding acidic stop solution. The density of yellow is proportional to the human CD209 amount of sample captured in plate.

• Detection Target: DC-SIGN (CD209)
• Uniprot ID: Q9NNX6)
• Reactivity: Human
• Cross-Reactivity: There is no detectable cross-reactivity with other relevant proteins.
• Range: 93.7pg/ml-6000pg/ml
• Sensitivity: <10pg/ml
• Storage Conditions: Store at 4?C for 6 months, at -20?C for 12 months. Avoid multiple freeze-thaw cycles. (Shipped with wet ice)

Additional Information:

The capture antibody is a monoclonal antibody from mouse, the detection antibody is a biotinylated polyclonal antibody from goat. Expression system for standard: DC-SIGN (Dendritic Cell-Specific Intercellular adhesion molecule-3-Grabbing Non-integrin) also known as CD209 (Cluster of Differentiation 209) is a protein which in humans is encoded by the CD209 gene. This gene encodes a transmembrane receptor and is often referred to as DC-SIGN because of its expression on the surface of dendritic cells and macrophages. The encoded protein is involved in the innate immune system and recognizes numerous evolutionarily divergent pathogens ranging from parasites to viruses with a large impact on public health. The protein is organized into three distinct domains: an N-terminal transmembrane domain, a tandem-repeat neck domain and C-type lectin carbohydrate recognition domain. The extracellular region consisting of the C-type lectin and neck domains has a dual function as a pathogen recognition receptor and a cell adhesion receptor by binding carbohydrate ligands on the surface of microbes and endogenous cells. The neck region is important for homo-oligomerization which allows the receptor to bind multivalent ligands with high avidity. Variations in the number of 23 amino acid repeats in the neck domain of this protein are rare but have a significant impact on ligand binding ability. This gene is closely related in terms of both sequence and function to a neighboring gene. DC-SIGN and L-SIGN differ in their ligand-binding properties and distribution. Alternative splicing results in multiple variants.; Immunogen sequence: 369

This material is sold for in-vitro use only for manufacturing and research. This material is not suitable for human or animal use. While we make every effort to ensure the safety of our products, we recommend handling any biological materials with standard precautions as if capable of spreading infectious disease. The statements herin are offered for informational purposes only to be used solely for your consideration, investigation, and verification.

Please be aware the image pictured is for illustrative purposes only, and your product packaging and appearance may vary.

No Data Sheets available
